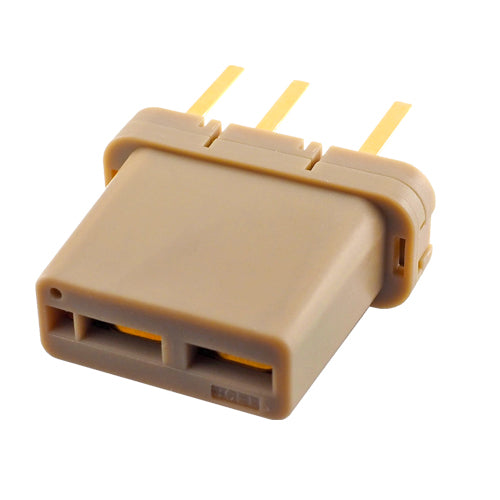

Power device socket, 3 terminal, PCB mounting type, low inductance, TT3PNF-L214-ST-BK-P, 1 piece

Power device socket, 3 terminal, PCB mounting type, low inductance, TT3PNF-L214-ST-BK-P, 1 piece

¥2,420
¥2,420
Sale Sold out
Taxes included. Shipping calculated at checkout.

36-00030
  • Power transistor sockets
  • IC test socket
  • Supports TO-3P/TO-247/TO-264 packages
    (Some shapes may not be usable.)
  • Contact resistance: 20mΩ max
  • Withstand voltage: DC4000V 1 minute at 25°C (DC5000V Max **)
    AC3000Vrms 1 minute at 25°C(Between Drain and Source)
  • Temperature range: -55℃ to +175℃
  • High Current
  • High pressure type
  • Kelvin connection compatible
  • PPS material low inductance
