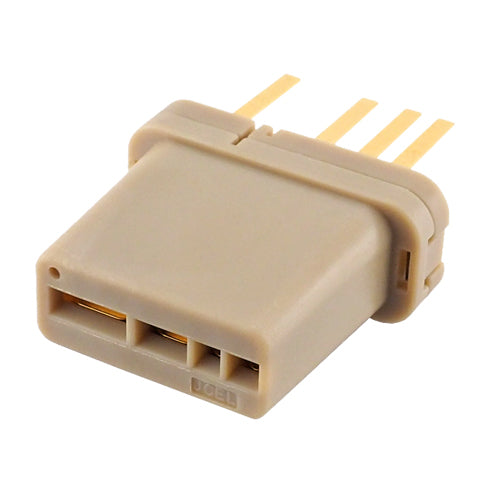

Power device socket, 4-terminal socket, TO-247 4L compatible, T4PNF-L214-ST-BK-P, 1 piece

Power device socket, 4-terminal socket, TO-247 4L compatible, T4PNF-L214-ST-BK-P, 1 piece

¥2,310
¥2,310
Sale Sold out
Taxes included. Shipping calculated at checkout.

36-00027
  • Power transistor sockets
  • IC test socket

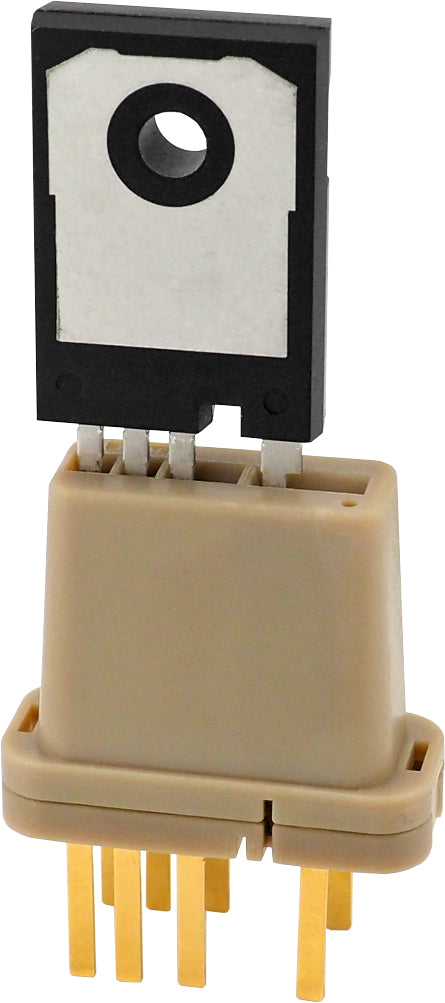

  • Supports packages such as TO-247 4L
    (Some shapes may not be usable.)
  • Withstand voltage: DC4000V 1 minute at 25℃(DC5000V Max **),
    AC3000Vrms 1 minute at 25℃(Between Drain and Source)
  • Temperature range: -55℃ to +175℃
  • For board mounting
  • PEEK low outgassing
