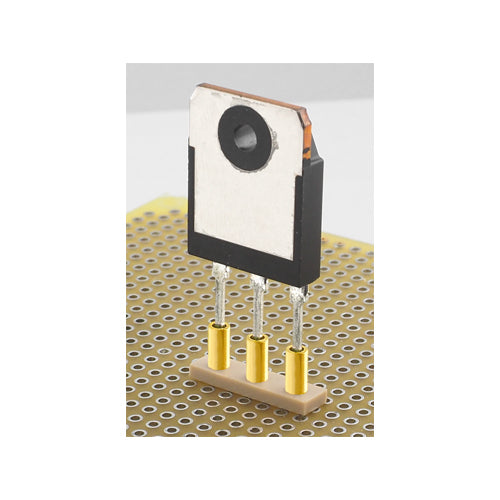

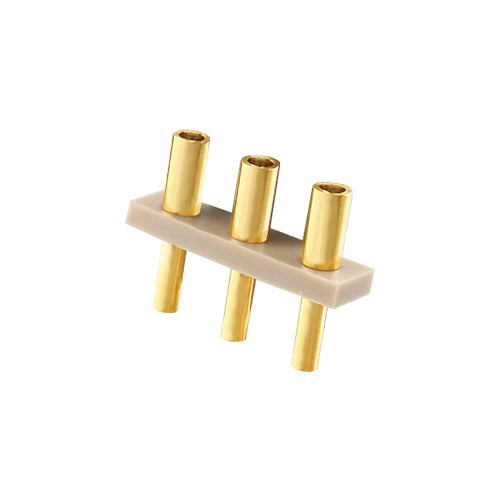

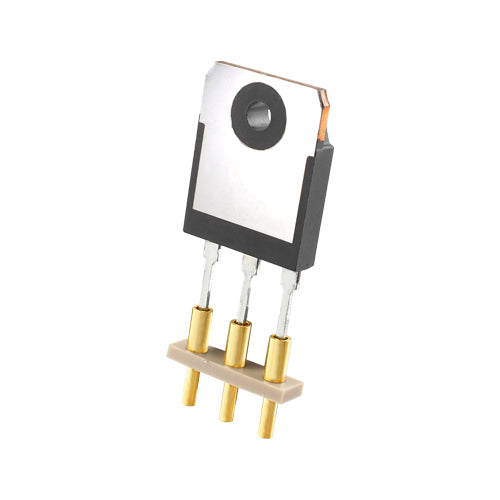

Power device socket, 3 terminal, PCB mounting type, PDHS545-NB195-S03-T3, pack of 10

Power device socket, 3 terminal, PCB mounting type, PDHS545-NB195-S03-T3, pack of 10

¥20,240
¥20,240
Sale Sold out
Taxes included. Shipping calculated at checkout.

36-00033
  • Power transistor IC socket
  • High heat resistance type 250℃
  • 5.45mm pitch
  • Compatible with packages such as TO-3P/TO-247/TO-264 (Some packages may not be compatible depending on their shape.)
  • Withstand voltage: AC2000Vrms 1 minute at 25°C (AC3000V Max)
  • Insulation resistance: 1000 MΩ min, DC500V
  • Temperature range: -45℃ to +205℃
  • Suitable plug diameter: 0.82 - 1.2mm/0.032" - 0.047"
