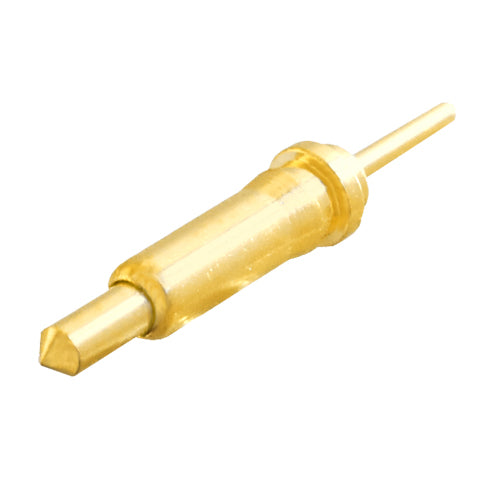

Spring probe (pogo pin) single end probe pin 8YJ1552G-2HT-CON 10 pieces
Spring probe (pogo pin) single end probe pin 8YJ1552G-2HT-CON 10 pieces
Regular price
¥2,640
Regular price
Sale price
¥2,640
Unit price
/
per
Tax included.
Shipping calculated at checkout.
SKU:9-00002
Couldn't load pickup availability
- Initial load: 0.086N(8.7gf)
- 0.392N (40gf) at 1.0mm stroke
- Full stroke: 2.0mm
- Current capacity: 1.5A
- Maximum diameter φ1.75 Total length 10.2mm
- The tip of the contact is a "needle" shape that is suitable for breaking through thick insulation films.
![](https://cdn.shopify.com/s/files/1/0797/0652/1878/files/15370_Drawing_1a54211f-a0e0-4141-82b5-3db5ff4fc260_100x100.gif?v=1690531263)
Share
![スプリングプローブ(ポゴピン)片端プローブピン 8YJ1552G-2HT-CON 10個入 - Net Shop CONNEX](http://conex.co.jp/cdn/shop/products/8YJ1552G-2HT-CON.jpg?v=1696566182&width=1445)
